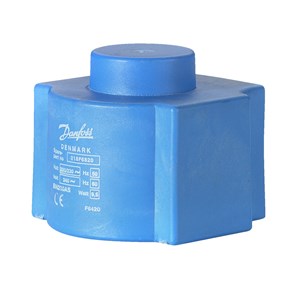

PHỤ TÙNG VAN DANFOSS SOLENOID COIL 24V C/N 018F7358

Gross weight

0.26 kg

Net weight

0.24 kg

EAN

5702428044530

Actuator size

13.5 mm

Ambient temperature range [°C] [Max]

80 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

176 °F

Ambient temperature range [°F] [Min]

-40 °F

Coil connection

DIN Spade

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Compliance

EN 60730-1

Duty rating

Continuous

Electrical connection

DIN Spade

Electrical connection size

6.3 mm x 0.8 mm

Electrical connection standard

EN175301-803

Electrical connector

3 x spades

Enclosure rating IP

IP00

Frequency [Hz]

50 Hz

Packing format

Multi pack

Parts Program name

EV210B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV212B
EV222B
EV224B
EV250B
EV251B
EV310B

Power consumption 50Hz [VA]

19 VA

Power consumption [W] 50Hz

11 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product name

Solenoid coil

Quantity per packing format

50 pc

Rel. Humidity [% RH] [Max]

97 %

Rel. Humidity [% RH] [Min]

0 %

Rel. Humidity conditions

Non-condensation

Serviceable

No

Spare part number

018F7358

Supply voltage 50Hz Max [V]

24 V

Supply voltage [V] a.c.

24 V

Supply voltage [V] AC

24 V

Type

BB024AS

Type designation

BB024AS
