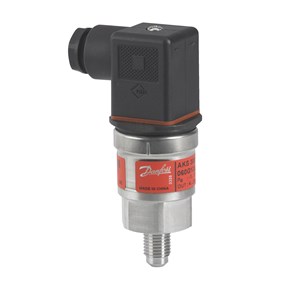

CẢM BIẾN ÁP SUẤT AKS3000 1-9.81 BAR C/N 060G6273
Pressure connection size: 1/4-18, Pressure connection type: NPT, Electrical connection: Cable
|
+ supply |
Brown |
|
- common |
Black |
|
Accuracy, max. +/- FS [%] |
2 % |
|
Accuracy, typical +/- FS [%] |
1 % |
|
Adj. zero point and span |
No |
|
Ambient temperature range [°C] [Max] |
85 °C |
|
Ambient temperature range [°C] [Min] |
-40 °C |
|
Ambient temperature range [°F] [Max] |
185 °F |
|
Ambient temperature range [°F] [Min] |
-40 °F |
|
Approval |
ATEX |
|
Approval comments |
ATEX Ex nA IIA T3 Gc |
|
Approval standard |
6967179 |
|
Cable length [in] |
179.92 in |
|
Cable length [m] |
4.57 m |
|
Compensated temp. range [°C] [Max] |
40 °C |
|
Compensated temp. range [°C] [Min] |
-30 °C |
|
Compensated temp. range [°F] [Max] |
104 °F |
|
Compensated temp. range [°F] [Min] |
-22 °F |
|
Electrical conn. comments |
Screened + Adaptor |
|
Electrical connection |
Cable |
|
Enclosure rating IP |
IP67 |
|
Flush diaphragm |
No |
|
High Clipping Level |
22.4 |
|
Intrinsically safe |
No |
|
Low Clipping Level |
3.6 |
|
Medium temperature range [°C] [Max] |
85 °C |
|
Medium temperature range [°C] [Min] |
-40 °C |
|
Medium temperature range [°F] [Max] |
185 °F |
|
Medium temperature range [°F] [Min] |
-40 °F |
|
Non-linearity BFSL ±FS [%] |
0.5 % |
|
Output signal [mA] [Max] |
20 mA |
|
Output signal [mA] [Min] |
4 mA |
|
Overload press. max. [kg/cm2] |
33 kg/cm2 |
|
Packing format |
Multi pack |
|
Pressure connection size |
1/4-18 |
|
Pressure connection standard |
ANSI/ASME B1.20.1 |
|
Pressure connection type |
NPT |
|
Pressure Male/Female |
Male |
|
Pressure range [bar] [Max] |
9.81 bar |
|
Pressure range [bar] [Min] |
1 bar |
|
Pressure range [kg/cm2] [Max] |
10 kg/cm2 |
|
Pressure range [kg/cm2] [Min] |
-1 kg/cm2 |
|
Pressure range [psi] [Max] |
227.51 psi |
|
Pressure range [psi] [Min] |
0 psi |
|
Pressure unit reference |
Gauge (relative) |
|
Product family name |
AKS |
|
Product group |
Sensors |
|
Product name |
Pressure transmitter |
|
Pulse-snubber |
No |
|
Quantity per packing format |
8 pc |
|
Response time max. [ms] |
4 ms |
|
Specification key |
AKS 3000-N831-J3EC04-0 |
|
Supply voltage [V] DC [Max] |
30 V |
|
Supply voltage [V] DC [Min] |
10 V |
|
Type |
AKS 3000 |
