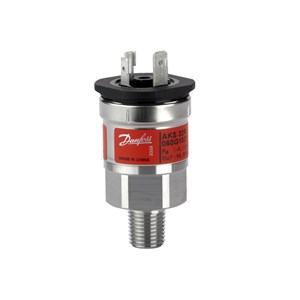

CẢM BIẾN ÁP SUẤT AKS32R -1-12 BAR C/N 060G5961

Mã sản phẩm: 060G5961

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

CẢM BIẾN ÁP SUẤT AKS32R -1-12 BAR C/N 060G5961

Pressure connection size: 7/16-20, Pressure connection type: UNF, Electrical connection size: Pg 9, Electrical connection: DIN-plug

+ output	Pin 3
+ supply	Pin 1
- common	Pin 2
Accuracy, max. +/- FS [%]	0.8 %
Accuracy, typical +/- FS [%]	0.3 %
Adj. zero point and span	No
Ambient temperature range [°C] [Max]	85 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	ATEX C UR CSA GOST POCC
Approval comments	ATEX Ex nA IIA T3 Gc
Approval standard	6967179 E227388 E31024
Compensated temp. range [°C] [Max]	40 °C
Compensated temp. range [°C] [Min]	-30 °C
Compensated temp. range [°F] [Max]	104 °F
Compensated temp. range [°F] [Min]	-22 °F
Electrical conn. Male/Female	Male and Female
Electrical connection	DIN-plug
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
Flush diaphragm	No
High Clipping Level	98
Identical product	060G4561
Intrinsically safe	No
Low Clipping Level	4
Medium temperature range [°C] [Max]	85 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	185 °F
Medium temperature range [°F] [Min]	-40 °F
Non-linearity BFSL ±FS [%]	0.2 %
Overload pressure max. [bar]	33 bar
Overload pressure max. [psi]	479 psi
Packing format	Multi pack
Pressure connection HEX [mm]	17 mm
Pressure connection notes	Flare 1/4 in w/ valvedepressor
Pressure connection size	7/16-20
Pressure connection type	UNF
Pressure Male/Female	Female
Pressure range [bar] [Max]	12 bar
Pressure range [bar] [Min]	-1 bar
Pressure range [psi] [Max]	174.05 psi
Pressure range [psi] [Min]	-14.5 psi
Pressure unit reference	Gauge (relative)
Product family name	AKS
Product group	Sensors
Product name	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	14 pc
Ratiometric of Vsupply [%] [Max]	90 %
Ratiometric of Vsupply [%] [Min]	10 %
Response time max. [ms]	4 ms
Specification key	AKS 32R-DH36-A1BF08-0
Supply voltage [V] DC [Max]	8 V
Supply voltage [V] DC [Min]	4.75 V
Type	AKS 32R
