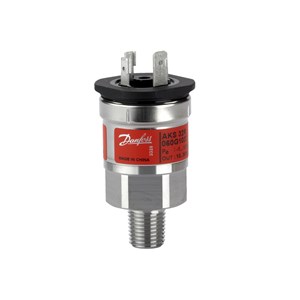

CẢM BIẾN ÁP SUẤT AKS33 0-68.95 BAR C/N 060G5656

Gross weight

0.18 kg

Net weight

0.16 kg

EAN

5702423266494

+ supply

Pin 1

- common

Pin 3

Accuracy, max. +/- FS [%]

0.8 %

Accuracy, typical +/- FS [%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-13 °F

Approval

ATEX
C UR
CSA
GOST POCC

Approval comments

Ex II 3G Ex-nA IIAT3

Approval standard

6967179
E227388
E31024

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

104 °F

Compensated temp. range [°F] [Min]

-22 °F

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

EN 60947-5-2

Enclosure rating IP

IP67

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL ±FS [%]

0.2 %

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [psi]

2000 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/8-27

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [Max]

68.95 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

1000 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Gauge (relative)

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

Response time max. [ms]

4 ms

Specification key

AKS 33-7031-E3AC02-0

Supply voltage [V] DC [Max]

30 V

Supply voltage [V] DC [Min]

10 V

Type

AKS 33
