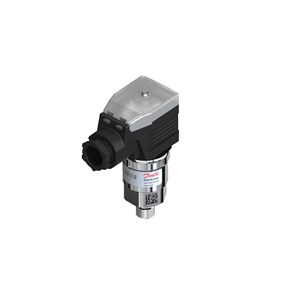

CẢM BIẾN ÁP SUẤT MBS 3200 0-6 BAR C/N 060G5626

+ supply

Pin 1

- common

Pin 2

Accuracy, max. +/- FS [%]

1 %

Accuracy, typical +/- FS [%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

100 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

212 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex nA IIA T3 Gc

Compensated temp. range [°C] [Max]

100 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

212 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male

Electrical connection

Bayonet

Electrical connection standard

ISO 15170

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

22.4

Intrinsically safe

No

Low Clipping Level

3.6

Medium temperature range [°C] [Max]

125 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

257 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL ±FS [%]

0.2 %

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

20 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [Max]

6 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

87.02 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Gauge (relative)

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

20 pc

Response time max. [ms]

4 ms

Specification key

MBS 3200-1811-C8AB04-0

Supply voltage [V] DC [Max]

34 V

Supply voltage [V] DC [Min]

9 V

Type

MBS 3200
