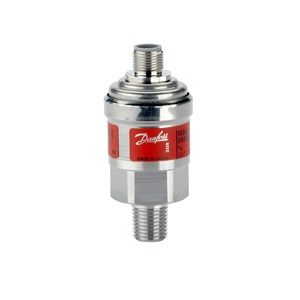

CẢM BIẾN ÁP SUẤT MBS 3050 0-10 BAR C/N 060G5614

+ output

Pin 3

+ supply

Pin 1

- common

Pin 4

Accuracy, max. +/- FS [%]

1 %

Accuracy, typical +/- FS [%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-13 °F

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

EN 60947-5-2

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

11.5

Intrinsically safe

No

Low Clipping Level

0

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL ±FS [%]

0.5 %

Output signal [V] [Max]

10 V

Output signal [V] [Min]

0 V

Overload pressure max. [bar]

60 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [Max]

10 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

145.04 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Gauge (relative)

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

20 pc

Response time max. [ms]

4 ms

Specification key

MBS 3050-2015-E3AC04-0

Supply voltage [V] DC [Max]

30 V

Supply voltage [V] DC [Min]

15 V

Type

MBS 3050
