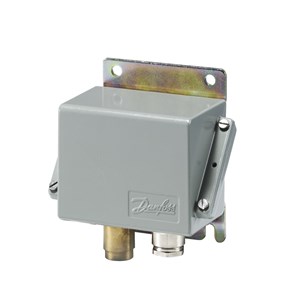

CẢM BIẾN ÁP SUẤT EMP2 DANFOSS 0-400 BAR C/N 084G2118

Gross weight

1.1 kg

Net weight

1.1 kg

EAN

5702423024322

+ supply

P

- common

N

Accuracy, max. +/- FS [%]

0.5 %

Accuracy, typical +/- FS [%]

0.5 %

Adj. zero point and span

No

Approval

ABS
BV
CCS
DNV
GL
GOST POCC
KR
LR
NNK
RINA

Compensated temp. range [°C] [Max]

70 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

158 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical connection

Terminal block

Electrical connection size

Pg 13.5

Enclosure rating IP

IP67

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [Max]

70 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

158 °F

Medium temperature range [°F] [Min]

14 °F

Non-linearity BFSL ±FS [%]

0.3 %

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

600 bar

Packing format

Multi pack

Pressure connection notes

Combi connection G1/4 female

Pressure connection size

1/2

Pressure connection standard

EN 228-1

Pressure connection type

G

Pressure Male/Female

Male/Female

Pressure range [bar] [Max]

400 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

5801.51 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

8 pc

Response time max. [ms]

4 ms

Supply voltage [V] DC [Max]

32 V

Supply voltage [V] DC [Min]

11 V

Type

EMP 2
