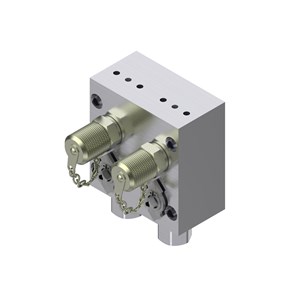

VAN CHẶN DANFOSS MBV 5000 C/N 061B7002

Mã sản phẩm: 061B7002

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

VAN CHẶN DANFOSS MBV 5000 C/N 061B7002

Product name: Test valve, Type: MBV 5000, Number of inputs [pc]: 3, Number of outputs [pc]: 3, Test function: Separate

Gross weight	1.32 kg
Net weight	1.09 kg
EAN	5702423059218
Ambient temperature range [°C] [Max]	120 °C
Ambient temperature range [°C] [Min]	-20 °C
Ambient temperature range [°F] [Max]	248 °F
Ambient temperature range [°F] [Min]	-4 °F
Approval	EAC RoHS
Ball valves [pc]	3 pc
MiniMess included	Yes
Number of inputs [pc]	3 pc
Number of outputs [pc]	3 pc
Operating temperature [°C] [Max]	120 °C
Operating temperature [°C] [Min]	-20 °C
Operating temperature [°F] [Max]	248 °F
Operating temperature [°F] [Min]	-4 °F
Output connection type	Flange
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	DIN 3852-E
Pressure connection type	G
Pressure Male/Female	Female
Pressure range (Pi) [bar] [Max]	120 bar
Pressure range (Pi) [bar] [Min]	0 bar
Pressure range (Pi) [bar] oil [Max]	180 bar
Pressure range (Pi) [bar] oil [Min]	0 bar
Pressure thread conn standard	ISO 228-1
Product description	Test Valve
Product group	Shut-off and regulating valves
Product name	Test valve
Pulse-snubber	No
Quantity per packing format	12 pc
Specification key	MBV5000-1311
Test function	Separate
Test pressure connection size	16 x 2
Test pressure connection type	M
Type	MBV 5000
