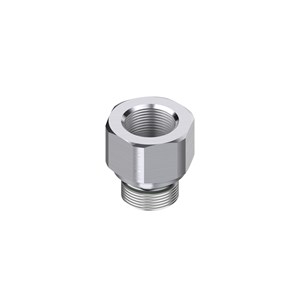

VAN CHẶN DANFOSS MBV 2000 C/N 061B6003

Gross weight

0.12 kg

Net weight

0.1 kg

EAN

5702423133185

Ambient temperature range [°C] [Max]

200 °C

Ambient temperature range [°C] [Min]

-20 °C

Ambient temperature range [°F] [Max]

382 °F

Ambient temperature range [°F] [Min]

-4 °F

Burst pressure [bar]

1500 bar

External conn. Male/Female

Male

External connection size

1/2

External connection standard

DIN 3852-E

External connection type

G

Internal connection size

1/2

Internal connection standard

DIN 3852

Internal connection type

G

Max. test pressure [psig]

8702 psig

Max. Working Pressure [bar]

600 bar

Operating temperature [°C] [Max]

200 °C

Operating temperature [°C] [Min]

-20 °C

Operating temperature [°F] [Max]

382 °F

Operating temperature [°F] [Min]

-4 °F

Packing format

Multi pack

Product description

Isolation Valve

Product group

Shut-off and regulating valves

Product name

Isolation valve

Quantity per packing format

60 pc

Specification key

MBV2000-223

Type

MBV 2000

Width across flats [mm]

30 mm
