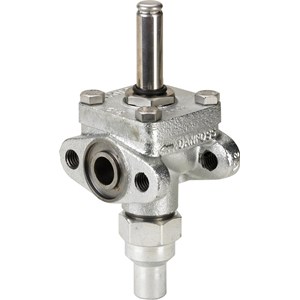

VAN ĐIỆN TỪ DANFOSS EVRAT 20 C/N 032F6219

Gross weight

2.7 kg

Net weight

2.44 kg

EAN

5702422178132

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - 80 °C

Ambient temperature range [°F] [Max]

175 °F

Ambient temperature range [°F] [Min]

-40 °F

Body material

Cast iron

Coil

No

Cv value [gal/min]

5.2 gal/min

Direction

Straightway

Flow direction indicator

Embossed 1-way arrow

Function

NC

Inlet connection type

FLANGE

Kv value [m³/h]

4.5 m3/h

Manual operation option

Yes

Max. Working Pressure [bar]

42 bar

Max. Working Pressure [psig]

610 psig

MaxOPD[bar] 10W AC

14 bar

MaxOPD[bar] 12W AC

21 bar

MaxOPD[bar] 20W DC

13 bar

MaxOPD[psi] 14W AC

350 psi

Medium temp. range note

Defrost max 130°C/265°F

Medium temperature range [°C] [Max]

105 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

221 °F

Medium temperature range [°F] [Min]

-40 °F

MinODP [bar]

0 bar

MinODP [psi]

0 psi

Orifice size [mm]

20 mm

Outlet connection type

FLANGE

Packing format

Single pack

Parts Program name

EVRA / EVRAT

Product accessories

Flanges
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

1 pc

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R507
R717

Serviceable

Solenoid valve spare parts

Type

EVRAT 20

Type designation

Solenoid valve

Valve operation

SERVO-DIAPHRAGM
