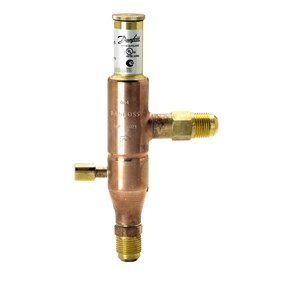

VAN ĐIỀU ÁP DANFOSS KVP12 M/12 C/N 034L0021

Gross weight

0.45 kg

Net weight

0.4 kg

EAN

5702428411882

Approval

C UL US LISTED
EAC
LLC CDC TYSK
RoHS
RoHS China

Approval file name

REFRIGERANT VALVE 53R0

Cv value [gal/min]

2.9 gal/min

Equipment

Schrader valve access port

Factory setting [bar]

2 bar

Factory setting [psig]

29 psig

Flow direction indicator

Engraved 1-way arrow

Further information

Max. extern.bellow press.26bar

Inlet connection type

FLARE

Inlet size [in]

1/2 IN

Inlet size [mm]

12 mm

Kv value [m³/h]

2.5 m3/h

Kv value note

AT MAX P-BAND

Max. test pressure [bar]

19.8 bar

Max. test pressure [psig]

286 psig

Max. Working Pressure [bar]

18 bar

Max. Working Pressure [psig]

260 psig

Medium temperature range [°C] [Max]

130 °C

Medium temperature range [°C] [Min]

-45 °C

Medium temperature range [°F] [Max]

266 °F

Medium temperature range [°F] [Min]

-49 °F

Outlet connection type

FLARE

Outlet size [in]

1/2 IN

Outlet size [mm]

12 mm

P band max. [bar]

1.7 bar

P band max. [psi]

24.6 psi

Packing format

Multi pack

Product accessories

No

Product family name

KVP

Product group

Press. and temp. regul. valves

Product name

Evaporator pressure regulator

Quantity per packing format

12 pc

Rated capacity R134a [kW]

2.8 kW

Rated capacity R134a [TR]

0.9 tons

Rated capacity R22 [kW]

4 kW

Rated capacity R22 [TR]

1.3 tons

Rated capacity R404A/R507 [kW]

3.6 kW

Rated capacity R404A/R507 [TR]

1.2 tons

Rated capacity R407C [kW]

3.7 kW

Rated capacity R407C [TR]

1.2 tons

Refrigerant oil compatibility

Oilfree applications
R1234ze(E)
R513A

Refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R422B
R422D
R448A
R449A
R450A
R452A
R507A
R513A
R1234ze
R407H
R449B
R454C
R455A
R515B
R516A
R1234yf
R454A

Regulation range [bar] [Max]

5.5 bar

Regulation range [bar] [Min]

0 bar

Regulation range [psig] Pe [Max]

80 psig

Regulation range [psig] Pe [Min]

0 psig

Serviceable

KV valves spare parts

Type

KVP 12
