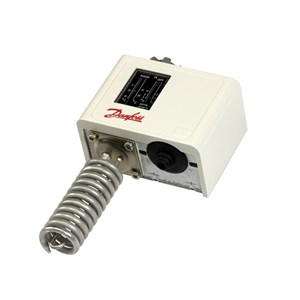

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP76 5°C-45°C C/N 060L120066

Mã sản phẩm: 060L120066

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP76 5°C-45°C C/N 060L120066

Product name: Thermostat, Type: KP76, Reset function: Auto, Contact function: SPDT

Gross weight	0.51 kg
Net weight	0.45 kg
EAN	5702423147380
mb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]	65 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	150 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	CCC CE EAC LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2
Charge type	Vapour
Contact function	SPDT
Contact rating	AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V
Diff. @ Max. range setting [K] [Max]	8 K
Diff. @ Max. range setting [K] [Min]	2 K
Diff. @ Max. range setting[°C] [Max]	8 °C
Diff. @ Max. range setting[°C] [Min]	2 °C
Diff. @ Min. range setting [K] [Max]	20 K
Diff. @ Min. range setting [K] [Min]	5 K
Diff. @ Min. range setting[°C] [Max]	20 °C
Diff. @ Min. range setting[°C] [Min]	5 °C
Differential type	Adjustable
Electrical connection	Rubber cable gland
Electrical connection size	6-14 mm
Electrical spec. standard	EN 60947-5
EN 60947 electrical properties	Pollution degree: 3 Rated impulse voltage: 4 kV
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
Equipment	Top plate
Max. sensor temperature [°C]	120 °C
Max. sensor temperature [°F]	248 °F
Packing format	Multi pack
Parts included	Screws Wall bracket
Product accessories	Switches accessories
Product description	Thermostat
Product family name	KP thermostat
Product group	Switches and thermostats
Product name	Thermostat
Quantity per packing format	32 pc
Reset function	Auto
Sensor size (Ø x L) [in]	1 1/2 x 1 1/4 in
Sensor size (Ø x L) [mm]	25 x 78 mm
Sensor type	Room sensor
Serviceable	No
Temperature range [°C] [Max]	45 °C
Temperature range [°C] [Min]	5 °C
Temperature range [°F] [Max]	113 °F
Temperature range [°F] [Min]	41 °F
Type	KP76
UL approval file name	E31024 MH27572
