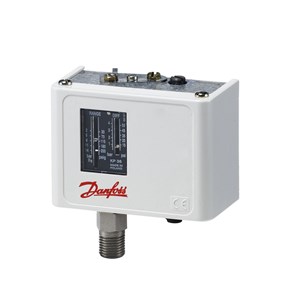

CÔNG TẮC ÁP SUẤT DANFOSS KP35 0.4-3.5 BAR C/N 060-216666

Gross weight

0.37 kg

Net weight

0.34 kg

EAN

5702428365390

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

65 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

149 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CCC
CE
EAC
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
CMIM

Contact function

SPDT

Contact rating

120Vac,16FLA,96LRA,3APilotDuty
16 A resistive, single phase
240 V ac, 8 FLA, 48 LRA
8 A resistive, single phase
240V dc,12W pilot duty(0.05 A)

Differential [bar] [Max]

2.2 bar

Differential [bar] [Min]

0.4 bar

Differential [psi] [Max]

32 psi

Differential [psi] [Min]

6 psi

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

Max. test pressure [bar] Pe

22 bar

Max. test pressure [psig]

319 psig

Max. Working Pressure [bar]

17 bar

Max. Working Pressure [psig]

245 psig

Packing format

Multi pack

Pressure connection size

1/2

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure range category

Low pressure

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product family name

KP Pressure switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

36 pc

Regulation range [bar] Pe [Max]

3.5 bar

Regulation range [bar] Pe [Min]

0.4 bar

Regulation range [psig] Pe [Max]

50 psig

Regulation range [psig] Pe [Min]

6 psig

Reset function

Auto

Serviceable

No

Type

KP35

UL approval file name

E31024
MH27572
