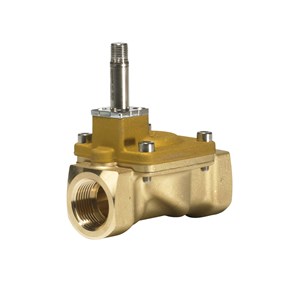

VAN ĐIỆN TỪ DANFOSS EV220A C/N 042U4088

Gross weight

5.11 kg

Net weight

4.69 kg

EAN

5702423232598

Actuator

A

Actuator size

9 mm

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Body material

Brass

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

2

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

37 gal/min

Differential pressure [bar] [Max]

16 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

232 psi

Differential pressure [psi] [Min]

4.35 psi

Est. time to close, water [ms]

10000 ms

Est. time to open, water [ms]

5000 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NC

Kv value [m³/h]

32 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media recommendations

Compressed air
Oil

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

60 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

140 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

50 mm

Orifice size fraction [in]

2 in

Packing format

Single pack

Parts Program name

EV220A

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

1 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220A 50B G 2N NC000

Type

EV220A

Type designation

EV220A 50

Valve operation

SERVO-DIAPHRAGM
