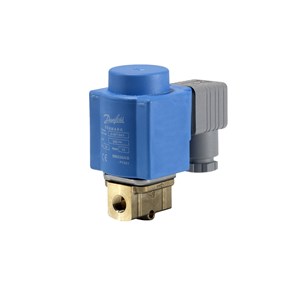

VAN ĐIỆN TỪ DANFOSS EV250B C/N 032U537631

Gross weight

1.4 kg

Net weight

1.33 kg

EAN

5702423218103

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

SINTEF
ACS
PZH

Body material

DZR brass

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

DZR brass

Connection size [in]

1

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

8.1 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

0 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

100 ms

Est. time to open, water [ms]

150 ms

Fluid Group

I

Frequency [Hz]

50 Hz

Function

NO

Further information

Can be used for rough vacuum

Kv value [m³/h]

7 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Drinking water (Max. 90 °C)
Hot water (Max 140 °C)
Technical water

Media tolerance comments

-30–120 °C: 0–10 bar
120–140 °C: 0–4 bar
Slightly aggressive media

Medium temperature range [°C] [Max]

120 °C

Medium temperature range [°C] [Min]

-30 °C

Medium temperature range [°F] [Max]

248 °F

Medium temperature range [°F] [Min]

-22 °F

Number of ways

2/2

Operation

Assisted lift operated

Orifice size [mm]

22 mm

Orifice size fraction [in]

7/8 in

Packing format

Multi pack

Parts Program name

EV250B

Power consumption [W] 50Hz

11 W

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV250B 22BD G 1E NO000 BB230AS

Supply voltage 50Hz Max [V]

230 V

Supply voltage [V] AC

230 V

Type

EV250B

Type designation

EV250B 22

Valve operation

SERVO-DIAPHRAGM
