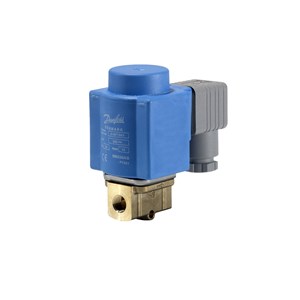

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U528616

Gross weight

0.99 kg

Net weight

0.95 kg

EAN

5702423201266

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Body material

Brass

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

6.95 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

4.35 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

500 ms

Est. time to open, water [ms]

200 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Frequency [Hz]

50 Hz

Function

NC

Kv value [m³/h]

6 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Compressed air
Oil
Water
Steam
Gases

Media tolerance comments

Neutral media
Water at max. 60°C/140 °F

Medium temperature range [°C] [Max]

90 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

194 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

18 mm

Orifice size fraction [in]

3/4 in

Packing format

Multi pack

Parts Program name

EV220B 6 - 22

Power consumption [W] 50Hz

11 W

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220B 18B G 34N NC000 BB024AS

Supply voltage 50Hz Max [V]

24 V

Supply voltage [V] AC

24 V

Type

EV220B

Type designation

EV220B 18

Valve operation

SERVO-DIAPHRAGM
