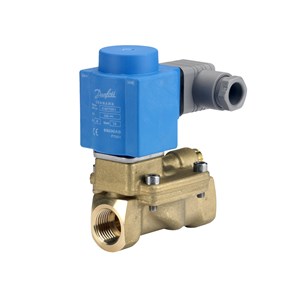

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U456831

Gross weight

2.6 kg

Net weight

2.22 kg

EAN

5702423186990

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Body material

Brass

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1 1/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

20.8 gal/min

Differential pressure [bar] [Max]

12 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

174 psi

Differential pressure [psi] [Min]

4.35 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

2500 ms

Est. time to open, water [ms]

1000 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Frequency [Hz]

50 Hz

Function

NC

Kv value [m³/h]

18 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

12 bar

Max. Working Pressure [psig]

174 psig

Media recommendations

Compressed air
Oil
Water
Steam
Gases

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

90 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

194 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

32 mm

Orifice size fraction [in]

1 1/4 in

Packing format

Single pack

Parts Program name

EV220B 15 - 50

Power consumption [W] 50Hz

11 W

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

1 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220B 32B G 114N NC000 BB230A

Supply voltage 50Hz Max [V]

230 V

Supply voltage [V] a.c.

230 V

Supply voltage [V] AC

230 V

Type

EV220B

Type designation

EV220B 32

Valve operation

SERVO-DIAPHRAGM
