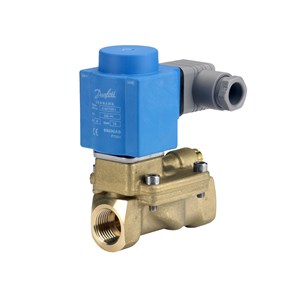

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U453402

Mã sản phẩm: 032U453402
Thương hiệu: Danfoss
Giá bán: 1 đ
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U453402

Type: EV220B, Function: NC, Connection size [in]: 1, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 12.700, Kv value [m³/h]: 11.000, Seal Material: NBR

Gross weight

1.69 kg

Net weight

1.63 kg

EAN

5702423198504

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Body material

Brass

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

12.7 gal/min

Differential pressure [bar] [Max]

16 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

232 psi

Differential pressure [psi] [Min]

4.35 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to open, water [ms]

300 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NC

Kv value [m³/h]

11 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media recommendations

Compressed air
Oil
Water
Steam
Gases

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

90 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

194 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

25 mm

Orifice size fraction [in]

1 in

Packing format

Multi pack

Parts Program name

EV220B 15 - 50

Power consumption [W] DC

16 W

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220B 25B G 1N NC000 BB024DS

Supply voltage [V] DC

24 V

Type

EV220B

Type designation

EV220B 25

Valve operation

SERVO-DIAPHRAGM
