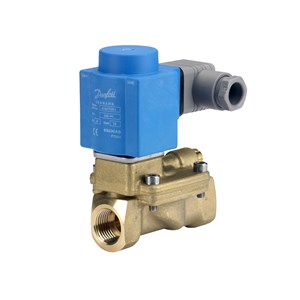

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U451431

Gross weight

1.02 kg

Net weight

0.96 kg

EAN

5702423186969

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

DNV
EAC
PED
PZH
SINTEF
UL

Body material

Brass

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/2

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

4.6 gal/min

Differential pressure [bar] [Max]

16 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

232 psi

Differential pressure [psi] [Min]

4.35 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

350 ms

Est. time to open, water [ms]

40 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Frequency [Hz]

50 Hz

Function

NC

Kv value [m³/h]

4 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media recommendations

Compressed air
Oil
Water
Steam
Gases

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

90 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

194 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

15 mm

Orifice size fraction [in]

5/8 in

Packing format

Multi pack

Parts Program name

EV220B 15 - 50

Power consumption [W] 50Hz

11 W

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220B 15B G 12N NC000 BB230AS

Supply voltage 50Hz Max [V]

230 V

Supply voltage [V] a.c.

230 V

Supply voltage [V] AC

230 V

Type

EV220B

Type designation

EV220B 15

Valve operation

SERVO-DIAPHRAGM
