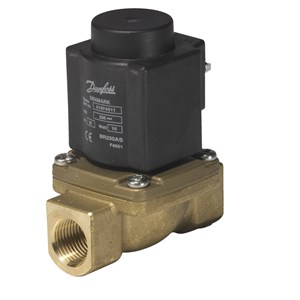

VAN ĐIỆN TỪ DANFOSS EV225B C/N 032U380629

Gross weight

1.5 kg

Net weight

1.44 kg

EAN

5702428473064

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

40 °C

Ambient temperature max. [°F]

104 °F

Approval

UL
UR

Body material

DZR brass

Coil option

Clip-on

Coil type

BQ

Connection Internal/External

Internal

Connection material

DZR brass

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

5.8 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

4.35 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

20 ms

Est. time to open, water [ms]

20 ms

Flow direction

Single-flow

Fluid Group

I

Frequency [Hz]

60 Hz

Function

NC

Kv value [m³/h]

5 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media tolerance comments

Slightly aggressive media

Medium temperature range [°C] [Max]

185 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

365 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

20 mm

Orifice size fraction [in]

3/4 in

Packing format

Multi pack

Power consumption [W] 60Hz

12 W

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

PTFE

Serviceable

Solenoid valve spare parts

Specification key

EV225B 20BD G 34T NC000 BQ220B

Supply voltage 60Hz Max [V]

220 V

Supply voltage [V] AC

220 V

Type

EV225B

Type designation

EV225B 20

Valve operation

SERVO-DIAPHRAGM
