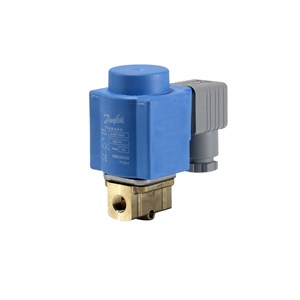

VAN ĐIỆN TỪ DANFOSS EV210B C/N 032U145831

Gross weight

0.5 kg

Net weight

0.45 kg

EAN

5702423187164

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Body material

Brass

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/8

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

0.09 gal/min

Differential pressure [bar] [Max]

30 bar

Differential pressure [bar] [Min]

0 bar

Differential pressure [psi] [Max]

435 psi

Differential pressure [psi] [Min]

0 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

20 ms

Est. time to open, water [ms]

10 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Frequency [Hz]

50 Hz

Function

NC

Further information

Can be used for rough vacuum

Kv value [m³/h]

0.08 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

45 bar

Max. test pressure [psig]

653 psig

Max. Working Pressure [bar]

30 bar

Max. Working Pressure [psig]

435 psig

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

100 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

212 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

1.5 mm

Orifice size fraction [in]

1/16 in

Packing format

Multi pack

Parts Program name

EV210B

Power consumption [W] 50Hz

11 W

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

24 pc

Seal Material

FKM

Serviceable

Solenoid valve spare parts

Specification key

EV210B 1.5B G 18F NC000 BB230A

Supply voltage 50Hz Max [V]

230 V

Supply voltage [V] AC

230 V

Type

EV210B

Type designation

EV210B 1.5

Valve operation

SERVO-DIAPHRAGM
