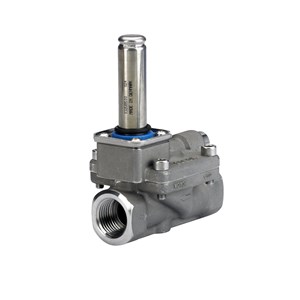

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U8501

Gross weight

0.82 kg

Net weight

0.77 kg

EAN

5702423124336

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

ACS
PZH

Body material

Stainless steel

Connection Internal/External

Internal

Connection material

Stainless steel

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

9.25 gal/min

Differential pressure [bar] [Max]

16 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

232 psi

Differential pressure [psi] [Min]

4.35 psi

Est. time to open, water [ms]

40 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NC

Kv value [m³/h]

8 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media recommendations

Water
Steam

Media tolerance comments

Aggressive media
Steam Max 4 bar
Temperature: Coil dependent

Medium temperature range [°C] [Max]

120 °C

Medium temperature range [°C] [Min]

-30 °C

Medium temperature range [°F] [Max]

248 °F

Medium temperature range [°F] [Min]

-22 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

20 mm

Orifice size fraction [in]

3/4 in

Packing format

Multi pack

Parts Program name

EV220B 15 - 50

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

24 pc

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 20SS G 34E NC000

Type

EV220B

Type designation

EV220B 20

Valve operation

SERVO-DIAPHRAGM
