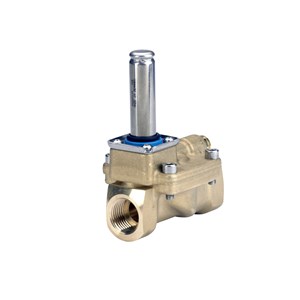

VAN ĐIỆN TỪ DANFOSS EV224B C/N 032U8365

Gross weight

1.38 kg

Net weight

1.32 kg

EAN

5702423208029

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

60 °C

Ambient temperature max. [°F]

140 °F

Body material

Brass

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

12.7 gal/min

Differential pressure [bar] [Max]

33 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

479 psi

Differential pressure [psi] [Min]

4.35 psi

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NO

Kv value [m³/h]

11 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

50 bar

Max. test pressure [psig]

725 psig

Max. Working Pressure [bar]

33 bar

Max. Working Pressure [psig]

479 psig

Media recommendations

Compressed air

Media tolerance comments

Air with/without mineral oil
Air with/without synthetic oil

Medium temperature range [°C] [Max]

60 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

140 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

25 mm

Orifice size fraction [in]

1 in

Packing format

Multi pack

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV224B 25B G 1N NO000

Type

EV224B

Type designation

EV224B 25

Valve operation

SERVO-DIAPHRAGM
