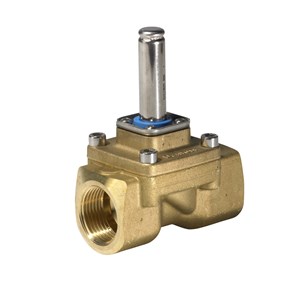

VAN ĐIỆN TỪ DANFOSS EV224B C/N 032U8362

Gross weight

0.9 kg

Net weight

0.85 kg

EAN

5702423164127

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Body material

Brass

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

9.25 gal/min

Differential pressure [bar] [Max]

35 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

508 psi

Differential pressure [psi] [Min]

4.35 psi

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NC

Kv value [m³/h]

8 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

50 bar

Max. test pressure [psig]

725 psig

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

508 psig

Media recommendations

Compressed air

Media tolerance comments

Air with/without mineral oil
Air with/without synthetic oil

Medium temperature range [°C] [Max]

60 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

140 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

20 mm

Orifice size fraction [in]

3/4 in

Packing format

Multi pack

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

24 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV224B 20B G 34N NC000

Type

EV224B

Type designation

EV224B 20

Valve operation

SERVO-DIAPHRAGM
