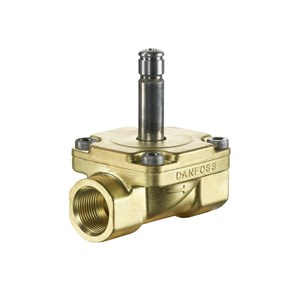

VAN ĐIỆN TỪ DANFOSS EV260B C/N 032U8057

Gross weight

1.22 kg

Net weight

1.16 kg

EAN

5702423061051

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Body material

Brass

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

5.8 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0.5 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

7.252 psi

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NC

Further information

Closes on power failure

Kv value [m³/h]

5 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Oil
Technical water

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

80 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

180 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Operation

Proportional

Orifice size [mm]

20 mm

Orifice size fraction [in]

3/4 in

Packing format

Multi pack

Parts Program name

EV260B

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

PTFE

Serviceable

Solenoid valve spare parts

Specification key

EV260B 20B G 34T NC000

Type

EV260B

Type designation

EV260B 20

Valve operation

SERVO-DIAPHRAGM
