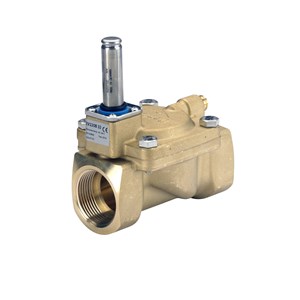

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U7184

Gross weight

3.33 kg

Net weight

3.03 kg

EAN

5702423125227

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Body material

Brass

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1 1/2

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

27.7 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

4.35 psi

Est. time to close, water [ms]

4000 ms

Est. time to open, water [ms]

1500 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NO

Kv value [m³/h]

24 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Max. Working Pressure note

Liquids: max 10 bar/145 psi

Media recommendations

Compressed air
Oil
Water
Steam
Gases

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

90 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

194 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

40 mm

Orifice size fraction [in]

1 1/2 in

Packing format

Single pack

Parts Program name

EV220B 15 - 50

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

1 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220B 40B G 112N NO000

Type

EV220B

Type designation

EV220B 40

Valve operation

SERVO-DIAPHRAGM
