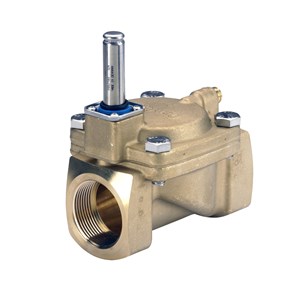

VAN ĐIỆN TỪ DANFOSS EV220B C/N 032U5840

Gross weight

3.34 kg

Net weight

2.94 kg

EAN

5702423054480

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

PZH
SINTEF

Body material

DZR brass

Connection Internal/External

Internal

Connection material

DZR brass

Connection size [in]

1 1/2

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

27.7 gal/min

Differential pressure [bar] [Max]

12 bar

Differential pressure [bar] [Min]

0.3 bar

Differential pressure [psi] [Max]

174 psi

Differential pressure [psi] [Min]

4.35 psi

Est. time to close, water [ms]

4000 ms

Est. time to open, water [ms]

1500 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NC

Kv value [m³/h]

24 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

12 bar

Max. Working Pressure [psig]

174 psig

Media recommendations

Water
Steam

Media tolerance comments

Slightly aggressive media
Steam Max 4 bar
Temperature: Coil dependent

Medium temperature range [°C] [Max]

120 °C

Medium temperature range [°C] [Min]

-30 °C

Medium temperature range [°F] [Max]

248 °F

Medium temperature range [°F] [Min]

-22 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

40 mm

Orifice size fraction [in]

1 1/2 in

Packing format

Single pack

Parts Program name

EV220B 15 - 50

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

1 pc

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 40BD G 112E NC000

Type

EV220B

Type designation

EV220B 40

Valve operation

SERVO-DIAPHRAGM
