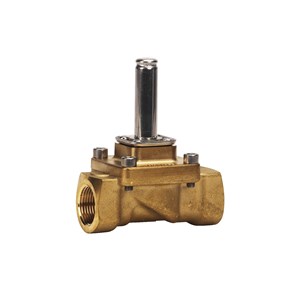

VAN ĐIỆN TỪ DANFOSS EV250B C/N 032U5255

Gross weight

0.87 kg

Net weight

0.82 kg

EAN

5702423179183

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

EAC
PED
PZH
SINTEF
UL

Body material

DZR brass

Connection Internal/External

Internal

Connection material

DZR brass

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

6.95 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

0 psi

Est. time to close, water [ms]

100 ms

Est. time to open, water [ms]

150 ms

Fluid Group

I

Function

NC

Further information

Can be used for rough vacuum

Kv value [m³/h]

6 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Compressed air
Oil
Technical water

Media tolerance comments

Slightly aggressive media
Water at max. 60°C/140 °F

Medium temperature range [°C] [Max]

100 °C

Medium temperature range [°C] [Min]

0 °C

Medium temperature range [°F] [Max]

212 °F

Medium temperature range [°F] [Min]

32 °F

Number of ways

2/2

Operation

Assisted lift operated

Orifice size [mm]

18 mm

Orifice size fraction [in]

3/4 in

Packing format

Multi pack

Parts Program name

EV250B

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

12 pc

Seal Material

FKM

Serviceable

Solenoid valve spare parts

Specification key

EV250B 18BD G 34F NC000

Type

EV250B

Type designation

EV250B 18

Valve operation

SERVO-DIAPHRAGM
