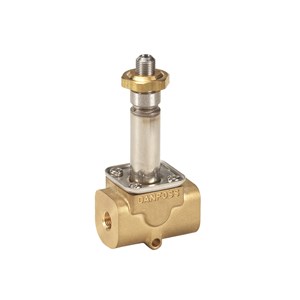

VAN ĐIỆN TỪ DANFOSS EV310B C/N 032U4901

Mã sản phẩm: 032U4901

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

VAN ĐIỆN TỪ DANFOSS EV310B C/N 032U4901: Type: EV310B, Function: NC, Connection size [in]: 1/8, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 0.170, Kv value [m³/h]: 0.150, Seal Material: FKM

Gross weight	0.35 kg
Net weight	0.32 kg
EAN	5702423179541
Actuator	B
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Actuator system [mm]	13.5 mm
Ambient temperature max. [°C]	40 °C
Ambient temperature max. [°F]	104 °F
Body material	Brass
Connection Internal/External	Internal
Connection material	Brass
Connection size [in]	1/8
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	0.17 gal/min
Differential pressure [bar] [Max]	16 bar
Differential pressure [bar] [Min]	0 bar
Differential pressure [psi] [Max]	232 psi
Differential pressure [psi] [Min]	0 psi
Est. time to close, water [ms]	20 ms
Est. time to open, water [ms]	20 ms
Fluid Group	I
Function	NC
Kv value [m³/h]	0.15 m3/h
Max. test pressure [bar]	24 bar
Max. test pressure [psig]	348 psig
Max. Working Pressure [bar]	16 bar
Max. Working Pressure [psig]	232 psig
Medium temperature range [°C] [Max]	100 °C
Medium temperature range [°C] [Min]	-10 °C
Medium temperature range [°F] [Max]	212 °F
Medium temperature range [°F] [Min]	14 °F
Number of ways	3/2
Operation	Direct-operated
Orifice size [mm]	2 mm
Orifice size fraction [in]	5/64 in
Packing format	Multi pack
Parts Program name	EV310B
Product accessories	Solenoid valve accessories
Product group	Solenoid valves
Product name	Solenoid valve
Quantity per packing format	16 pc
Seal Material	FKM
Serviceable	Solenoid valve spare parts
Specification key	EV310B 2B G 18F NC000
Type	EV310B
Type designation	EV310B 2
Valve operation	SERVO-DIAPHRAGM
