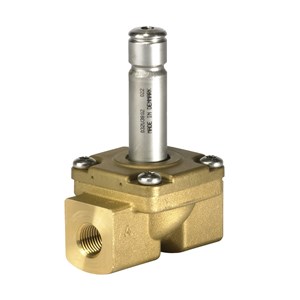

VAN ĐIỆN TỪ DANFOSS EV225B C/N 032U3807

Mã sản phẩm: 032U3807

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

VAN ĐIỆN TỪ DANFOSS EV225B C/N 032U3807: Type: EV225B, Function: NC, Connection size [in]: 1, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 6.950, Kv value [m³/h]: 6.000, Seal Material: PTFE

Gross weight	1.46 kg
Net weight	1.43 kg
EAN	5702428473101
Actuator	B
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Actuator system [mm]	13.5 mm
Ambient temperature max. [°C]	40 °C
Ambient temperature max. [°F]	104 °F
Approval	UL UR
Body material	DZR brass
Connection Internal/External	Internal
Connection material	DZR brass
Connection size [in]	1
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	6.95 gal/min
Differential pressure [bar] [Max]	10 bar
Differential pressure [bar] [Min]	0.3 bar
Differential pressure [psi] [Max]	145 psi
Differential pressure [psi] [Min]	4.35 psi
Est. time to close, water [ms]	20 ms
Est. time to open, water [ms]	20 ms
Flow direction	Single-flow
Fluid Group	I
Function	NC
Kv value [m³/h]	6 m3/h
Max media viscosity [cSt]	50 cSt
Max. test pressure [bar]	15 bar
Max. test pressure [psig]	217.5 psig
Max. Working Pressure [bar]	10 bar
Max. Working Pressure [psig]	145 psig
Media tolerance comments	Slightly aggressive media
Medium temperature range [°C] [Max]	185 °C
Medium temperature range [°C] [Min]	-10 °C
Medium temperature range [°F] [Max]	365 °F
Medium temperature range [°F] [Min]	14 °F
Number of ways	2/2
Operation	Servo-operated (diaphragm)
Orifice size [mm]	25 mm
Orifice size fraction [in]	1 in
Packing format	Multi pack
Product group	Solenoid valves
Product name	Solenoid valve
Quantity per packing format	12 pc
Seal Material	PTFE
Serviceable	Solenoid valve spare parts
Specification key	EV225B 25BD G 1T NC000
Type	EV225B
Type designation	EV225B 25
Valve operation	SERVO-DIAPHRAGM
