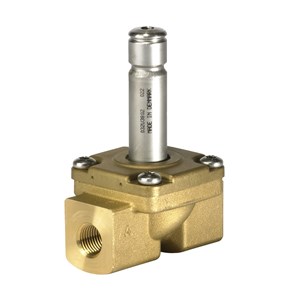

VAN ĐIỆN TỪ DANFOSS EV225B C/N 032U3802

Mã sản phẩm: 032U3802

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

VAN ĐIỆN TỪ DANFOSS EV225B C/N 032U3802: Type: EV225B, Function: NC, Connection size [in]: 1/4, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 1.040, Kv value [m³/h]: 0.900, Seal Material: PTFE

Gross weight	0.51 kg
Net weight	0.5 kg
EAN	5702428472272
Actuator	B
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Actuator system [mm]	13.5 mm
Ambient temperature max. [°C]	40 °C
Ambient temperature max. [°F]	104 °F
Approval	UL UR
Body material	DZR brass
Connection Internal/External	Internal
Connection material	DZR brass
Connection size [in]	1/4
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	1.04 gal/min
Differential pressure [bar] [Max]	10 bar
Differential pressure [bar] [Min]	0.3 bar
Differential pressure [psi] [Max]	145 psi
Differential pressure [psi] [Min]	4.35 psi
Est. time to close, water [ms]	20 ms
Est. time to open, water [ms]	20 ms
Flow direction	Single-flow
Fluid Group	I
Function	NC
Kv value [m³/h]	0.9 m3/h
Max media viscosity [cSt]	50 cSt
Max. test pressure [bar]	15 bar
Max. test pressure [psig]	217.5 psig
Max. Working Pressure [bar]	10 bar
Max. Working Pressure [psig]	145 psig
Media tolerance comments	Slightly aggressive media
Medium temperature range [°C] [Max]	185 °C
Medium temperature range [°C] [Min]	-10 °C
Medium temperature range [°F] [Max]	365 °F
Medium temperature range [°F] [Min]	14 °F
Number of ways	2/2
Operation	Servo-operated (diaphragm)
Orifice size [mm]	6 mm
Orifice size fraction [in]	1/4 in
Packing format	Multi pack
Product group	Solenoid valves
Product name	Solenoid valve
Quantity per packing format	15 pc
Seal Material	PTFE
Serviceable	Solenoid valve spare parts
Specification key	EV225B 6BD G14T NC000
Type	EV225B
Type designation	EV225B 6
Valve operation	SERVO-DIAPHRAGM
