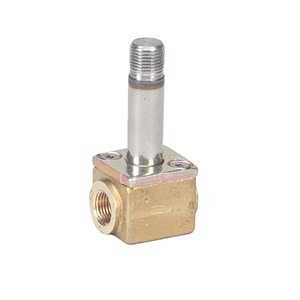

VAN ĐIỆN TỪ EV220B C/N 032U1237

Gross weight

0.26 kg

Net weight

0.25 kg

EAN

5702423020317

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Body material

Brass

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

0.8 gal/min

Differential pressure [bar] [Max]

20 bar

Differential pressure [bar] [Min]

0.1 bar

Differential pressure [psi] [Max]

290 psi

Differential pressure [psi] [Min]

1.45 psi

Est. time to close, water [ms]

250 ms

Est. time to open, water [ms]

40 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

I

Function

NC

Kv value [m³/h]

0.7 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

30 bar

Max. test pressure [psig]

435 psig

Max. Working Pressure [bar]

20 bar

Max. Working Pressure [psig]

290 psig

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

100 °C

Medium temperature range [°C] [Min]

0 °C

Medium temperature range [°F] [Max]

212 °F

Medium temperature range [°F] [Min]

32 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

6 mm

Orifice size fraction [in]

1/4 in

Packing format

Multi pack

Parts Program name

EV220B 6 - 22

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

20 pc

Seal Material

FKM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 6B G 14F NC000

Type

EV220B

Type designation

EV220B 6

Valve operation

SERVO-DIAPHRAGM
