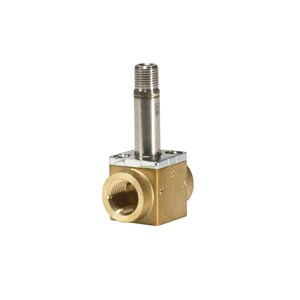

VAN ĐIỆN TỪ EV210 C/N 032U1231

Mã sản phẩm: 032U1231

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

VAN ĐIỆN TỪ EV210 C/N 032U1231: Type: EV210, Function: NC, Connection size [in]: 3/8, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 0.800, Kv value [m³/h]: 0.700, Seal Material: FKM

Gross weight	0.24 kg
Net weight	0.22 kg
EAN	5702423016792
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Ambient temperature max. [°C]	40 °C
Ambient temperature max. [°F]	104 °F
Body material	Brass
Connection Internal/External	Internal
Connection size [in]	3/8
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	0.8 gal/min
Differential pressure [bar] [Max]	1.2 bar
Differential pressure [bar] [Min]	0 bar
Differential pressure [psi] [Max]	17.143 psi
Differential pressure [psi] [Min]	0 psi
Function	NC
Kv value [m³/h]	0.7 m3/h
Max. Working Pressure [bar]	25 bar
Max. Working Pressure [psig]	363 psig
Medium temperature range [°C] [Max]	80 °C
Medium temperature range [°C] [Min]	-10 °C
Medium temperature range [°F] [Max]	180 °F
Medium temperature range [°F] [Min]	15 °F
Number of ways	2/2
Operation	Direct-operated
Orifice size [mm]	6 mm
Orifice size fraction [in]	1/4 in
Packing format	Multi pack
Quantity per packing format	20 pc
Seal Material	FKM
Type	EV210
Type designation	Solenoid valve
