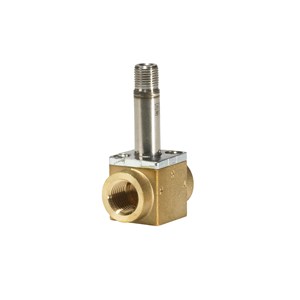

VAN ĐIỆN TỪ EV210 C/N 032U1230

Gross weight

0.31 kg

Net weight

0.29 kg

EAN

5702423005352

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Ambient temperature max. [°C]

40 °C

Ambient temperature max. [°F]

104 °F

Body material

Brass

Connection Internal/External

Internal

Connection size [in]

1/2

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

1.75 gal/min

Differential pressure [bar] [Max]

0.7 bar

Differential pressure [bar] [Min]

0 bar

Differential pressure [psi] [Max]

10 psi

Differential pressure [psi] [Min]

0 psi

Function

NC

Kv value [m³/h]

1.5 m3/h

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

363 psig

Medium temperature range [°C] [Max]

100 °C

Medium temperature range [°C] [Min]

0 °C

Medium temperature range [°F] [Max]

210 °F

Medium temperature range [°F] [Min]

32 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

10 mm

Orifice size fraction [in]

3/8 in

Packing format

Multi pack

Quantity per packing format

20 pc

Seal Material

FKM

Type

EV210

Type designation

Solenoid valve
