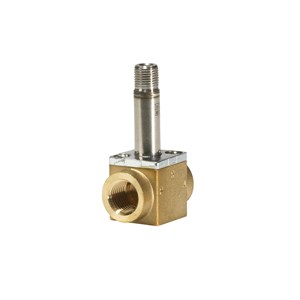

VAN ĐIỆN TỪ EV310A C/N 032H8097

Gross weight

0.13 kg

Net weight

0.12 kg

EAN

5702423050666

Actuator

A

Actuator size

9 mm

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Body material

Brass

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

0.08 gal/min

Differential pressure [bar] [Max]

12 bar

Differential pressure [bar] [Min]

0 bar

Differential pressure [psi] [Max]

174 psi

Differential pressure [psi] [Min]

0 psi

Est. time to close, water [ms]

10 ms

Est. time to open, water [ms]

10 ms

Flow direction indicator

Engraved A-P-R

Fluid Group

I

Function

NC

Kv value [m³/h]

0.07 m3/h

Max media viscosity [cSt]

20 cSt

Max. test pressure [bar]

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

12 bar

Max. Working Pressure [psig]

174 psig

Media recommendations

Compressed air
Oil
Technical water

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

100 °C

Medium temperature range [°C] [Min]

0 °C

Medium temperature range [°F] [Max]

212 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

3/2

Operation

Direct-operated

Orifice size [mm]

1.5 mm

Orifice size fraction [in]

1/16 in

Packing format

Multi pack

Parts Program name

EV310A

Product accessories

Solenoid coil accessories
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

16 pc

Seal Material

FKM

Serviceable

Solenoid valve spare parts

Specification key

EV310A 1.5B G 14F NC000

Type

EV310A

Type designation

EV310A 1.5
