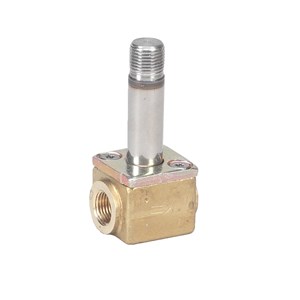

VAN ĐIỆN TỪ EV210A C/N 032H8033

Gross weight

0.11 kg

Net weight

0.09 kg

EAN

5702423051922

Actuator

A

Actuator size

9 mm

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Body material

Stainless steel

Connection Internal/External

Internal

Connection material

Stainless steel

Connection size [in]

1/8

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

0.26 gal/min

Differential pressure [bar] [Max]

14 bar

Differential pressure [bar] [Min]

0 bar

Differential pressure [psi] [Max]

203 psi

Differential pressure [psi] [Min]

0 psi

Est. time to close, water [ms]

10 ms

Est. time to open, water [ms]

10 ms

Flow direction

Single-flow

Flow direction indicator

Engraved 1-way arrow

Fluid Group

I

Function

NC

Kv value [m³/h]

0.22 m3/h

Max media viscosity [cSt]

20 cSt

Max. test pressure [bar]

21 bar

Max. test pressure [psig]

304.5 psig

Max. Working Pressure [bar]

14 bar

Max. Working Pressure [psig]

203 psig

Media recommendations

Compressed air
Oil

Media tolerance comments

Slightly aggressive media

Medium temperature range [°C] [Max]

100 °C

Medium temperature range [°C] [Min]

-10 °C

Medium temperature range [°F] [Max]

212 °F

Medium temperature range [°F] [Min]

14 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

3 mm

Orifice size fraction [in]

1/8 in

Packing format

Multi pack

Parts Program name

EV210A

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

16 pc

Seal Material

FKM

Serviceable

Solenoid valve spare parts

Specification key

EV210A 3.0SS G 18F NC000

Type

EV210A

Type designation

EV210A 3
