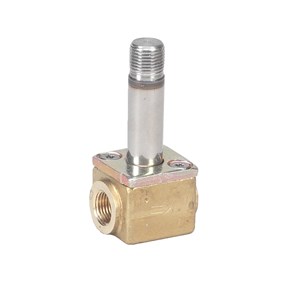

VAN ĐIỆN TỪ EV210 C/N 032H8031

Mã sản phẩm: 032H8031

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

VAN ĐIỆN TỪ EV210 C/N 032H8031: Type: EV210, Function: NC, Connection size [in]: 1/8, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 0.200, Kv value [m³/h]: 0.170, Seal Material: FKM

Gross weight	0.1 kg
Net weight	0.1 kg
EAN	5702423051168
Actuator size	9 mm
Actuator size [in]	0.35 in
Ambient temperature max. [°C]	50 °C
Ambient temperature max. [°F]	122 °F
Body material	Stainless steel
Connection Internal/External	Internal
Connection size [in]	1/8
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	0.2 gal/min
Differential pressure [bar] [Max]	20 bar
Differential pressure [bar] [Min]	0 bar
Differential pressure [psi] [Max]	285.714 psi
Differential pressure [psi] [Min]	0 psi
Function	NC
Kv value [m³/h]	0.17 m3/h
Max. Working Pressure [bar]	50 bar
Max. Working Pressure [psig]	715 psig
Medium temperature range [°C] [Max]	100 °C
Medium temperature range [°C] [Min]	-10 °C
Medium temperature range [°F] [Max]	210 °F
Medium temperature range [°F] [Min]	15 °F
Number of ways	2/2
Operation	Direct-operated
Orifice size [mm]	2.5 mm
Orifice size fraction [in]	3/32 in
Packing format	Multi pack
Quantity per packing format	16 pc
Seal Material	FKM
Type	EV210
Type designation	Solenoid valve
