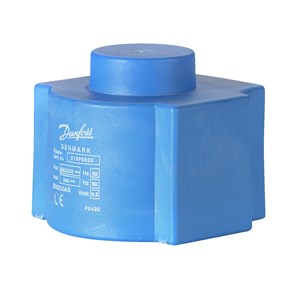

PHỤ TÙNG VAN DANFOSS SOLENOID COIL C/N 018F6968

Mã sản phẩm: 018F6968

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

PHỤ TÙNG VAN DANFOSS SOLENOID COIL C/N 018F6968: Type: BN024DS, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 13.5 mm

Gross weight	0.55 kg
Net weight	0.52 kg
EAN	5702428053181
Actuator size	13.5 mm
Ambient temperature range [°C] [Max]	50 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	120 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	LLC CDC TYSK
Coil connection	DIN Spade
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil type	I
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Duty rating	Continuous
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
Packing format	Multi pack
Parts Program name	EV210B EV212B EV215B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV225B EV245B
Power consumption [W] DC	20 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product name	Solenoid coil
Quantity per packing format	24 pc
Rel. Humidity [% RH] [Max]	97 %
Rel. Humidity [% RH] [Min]	0 %
Rel. Humidity conditions	Non-condensation
Serviceable	No
Spare part number	018F6968
Supply voltage [V] DC	24 V
Type	BN024DS
Type designation	BN024DS
