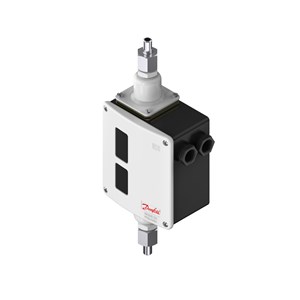

CÔNG TẮC ÁP SUẤT RT262AL DANFOSS 0.1-1 BAR C/N 017D004566

Mã sản phẩm: 017D004566

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

CÔNG TẮC ÁP SUẤT RT262AL DANFOSS 0.1-1 BAR C/N 017D004566: Diff.press.setting range [bar]: 0.10 - 1.00, Diff.press.setting range [psi]: 1.5 - 14.5, Pressure connection size: 3/8, Pressure connection type: G, Pressure Male/Female: Male.

Gross weight	1.41 kg
Net weight	1.12 kg
EAN	5702428042741
Alarm Signal	Falling
Ambient temperature range [°C] [Max]	70 °C
Ambient temperature range [°C] [Min]	-50 °C
Ambient temperature range [°F] [Max]	158 °F
Ambient temperature range [°F] [Min]	-58 °F
Ammonia application	Yes
Approval	CCC CE EAC LVD PZH RMRS RoHS RoHS China TYSK
Contact differential [bar]	0.05 bar
Contact function	SPDT (neutral zone)
Contact rating	AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V
Diff.press.setting range [bar] [Max]	1 bar
Diff.press.setting range [bar] [Min]	0.1 bar
Diff.press.setting range [MPa] [Max]	0.1 MPa
Diff.press.setting range [MPa] [Min]	0.01 MPa
Diff.press.setting range [psi] [Max]	14.5 psi
Diff.press.setting range [psi] [Min]	1.5 psi
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	2xPg 13.5
Electrical connection standard	DIN 40430
Electrical spec. standard	EN 60947-4/-5
EN 60947 electrical properties	Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A
EN 60947 wiring properties	Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP	IP66
Factory setting [bar]	0.8 bar
Factory setting [MPa]	0.08 MPa
Factory setting [psig]	11 psig
Max. neutral zone [bar]	0.23 bar
Max. test pressure [bar] Pe	8 bar
Max. test pressure [psig]	116 psig
Max. Working Pressure [bar]	7 bar
Max. Working Pressure [psig]	101 psig
Operat. range LP side [bar] Pe [Max]	6 bar
Operat. range LP side [bar] Pe [Min]	-1 bar
Operat. range LP side [psig]Pe [Max]	87 psig
Operat. range LP side [psig]Pe [Min]	-15 psig
Packing format	Multi pack
Pressure connection notes	Weld nipple d6.5/D10mm
Pressure connection size	3/8
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] Pe [Max]	6 bar
Pressure range [bar] Pe [Min]	-1 bar
Product accessories	Generic accessories Switches accessories
Product description	Diff. Pressure Switch
Product family name	RT Pressure switch
Product group	Switches and thermostats
Product name	Differential pressure switch
Quantity per packing format	9 pc
Reset function	Auto
Serviceable	Contact systems
Type	RT263AL
