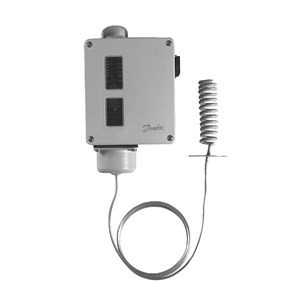

THIẾT BỊ RT140 DANFOSS 15-45°C C/N 017-523666

Gross weight

1.16 kg

Net weight

1.06 kg

EAN

5702423120901

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-50 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-58 °F

Approval

CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

Charge type

Adsorption

Contact function

SPDT

Contact rating

AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V

Diff. @ Max. range setting[°C] [Max]

11 °C

Diff. @ Max. range setting[°C] [Min]

2.5 °C

Diff. @ Min. range setting[°C] [Max]

8 °C

Diff. @ Min. range setting[°C] [Min]

1.8 °C

Differential type

Adjustable

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

Max. sensor temperature [°C]

240 °C

Max. sensor temperature [°F]

464 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Product family name

RT thermostat

Product group

Switches and thermostats

Product name

Thermostat

Quantity per packing format

9 pc

Reset function

Auto

Sensor size (Ø x L) [in]

1 x 3 1/2 in

Sensor size (Ø x L) [mm]

25 x 90 mm

Sensor type

Remote duct sensor

Serviceable

Contact systems

Temperature range [°C] [Max]

45 °C

Temperature range [°C] [Min]

15 °C

Temperature range [°F] [Max]

113 °F

Temperature range [°F] [Min]

59 °F

Type

RT140
