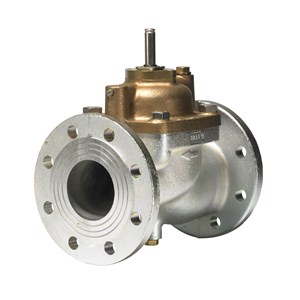

VAN ĐIỆN TỪ DANFOSS EV220B C/N 016D3331

Gross weight

26.5 kg

Net weight

25.18 kg

EAN

5702422130734

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

PZH

Body material

Cast iron

Connection material

Cast iron

Connection size [in]

3 in

Connection standard

EN 1092-1

Connection type

Flange

Cv value [gal/min]

87 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0.25 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

3.6 psi

Est. time to close, water [ms]

15000 ms

Est. time to open, water [ms]

5000 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

II

Function

NC

Kv value [m³/h]

75 m3/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

218 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Water

Media tolerance comments

Neutral media

Medium temperature range [°C] [Max]

90 °C

Medium temperature range [°C] [Min]

-25 °C

Medium temperature range [°F] [Max]

194 °F

Medium temperature range [°F] [Min]

-13 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (piston)

Orifice size [mm]

80 mm

Orifice size fraction [in]

3 in

Packing format

Single pack

Parts Program name

EV220B 65 - 100

Product accessories

Flanges
Solenoid valve accessories

Product group

Solenoid valves

Product name

Solenoid valve

Quantity per packing format

1 pc

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220B 80CI FL10 N NC000

Type

EV220B

Type designation

EV220B 80
