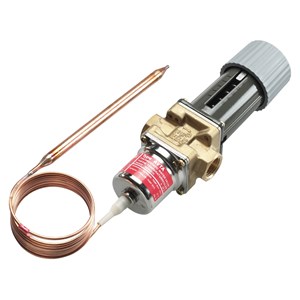

VAN ỔN NHIỆT AVTA 25 DANFOSS C/N 003N0047

Gross weight

1.65 kg

Net weight

1.25 kg

EAN

5702423005574

Approval

EAC
LLC CDC TYSK
PED
RoHS
RoHS China

Body material

Brass

Cap. tube length fraction [in]

78 3/4 in

Capillary tube gland Int/Ext

Internal

Capillary tube gland size [in]

1/2

Capillary tube gland standard

ISO 228-1

Capillary tube gland type

G

Capillary tube length [mm]

2000 mm

Charge type

Mass

Connection Internal/External

Internal

Connection size [in]

1

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

6.4 gal/min

Differential pressure [bar] [Max]

10 bar

Differential pressure [bar] [Min]

0 bar

Differential pressure [psi] [Max]

145 psi

Differential pressure [psi] [Min]

0 psi

Flow direction indicator

Embossed 1-way arrow

Kv value [m³/h]

5.5 m3/h

Max. pressure on sensor [bar]

25 bar

Max. pressure on sensor [psig]

362.6 psig

Max. sensor temperature [°C]

90 °C

Max. sensor temperature [°F]

194 °F

Max. test pressure [bar] Pe

25 bar

Max. test pressure [psig]

362.6 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media

Neutral media

Medium temperature range [°C] [Max]

130 °C

Medium temperature range [°C] [Min]

-25 °C

Medium temperature range [°F] [Max]

266 °F

Medium temperature range [°F] [Min]

-13 °F

Opening configuration

Opens on rising sensor temp.

Orifice size [mm]

25 mm

Orifice size fraction [in]

1 in

Packing format

Multi pack

Product accessories

Generic accessories
Water valves accessories

Product description

Thermostatic valve

Product family name

AVTA

Product group

Water regulating valves

Product name

Thermo. operated water valve

Quantity per packing format

10 pc

Sensor size (Ø x L) [in]

3/8 x 7 3/32 in

Sensor size (Ø x L) [mm]

9.5 x 180 mm

Serviceable

Water valve spare parts

Temperature range [°C] [Max]

65 °C

Temperature range [°C] [Min]

25 °C

Temperature range [°F] [Max]

149 °F

Temperature range [°F] [Min]

77 °F

Type

AVTA 25
