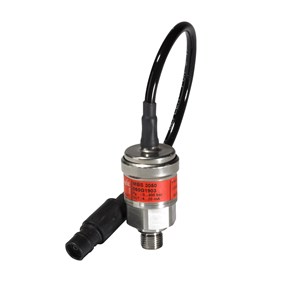

CẢM BIẾN ÁP SUẤT DANFOSS MBS3050 0-400 BAR C/N 060G1903

Mã sản phẩm: 060G1903

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

+ supply	Pin 1
- common	Pin 2
Accuracy, max. +/- FS [%]	1 %
Accuracy, typical +/- FS [%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [Max]	85 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	-40 °F
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Compensated temp. range [°F] [Max]	176 °F
Compensated temp. range [°F] [Min]	32 °F
Electrical conn. Male/Female	Male
Electrical connection	ITT Sure-Seal
Enclosure rating IP	IP67
Flush diaphragm	No
Intrinsically safe	No
Medium temperature range [°C] [Max]	85 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	185 °F
Medium temperature range [°F] [Min]	-40 °F
Non-linearity BFSL ±FS [%]	0.5 %
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	600 bar
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4
Pressure connection standard	DIN 3852-E
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [Max]	400 bar
Pressure range [bar] [Min]	0 bar
Pressure range [psi] [Max]	5801.51 psi
Pressure range [psi] [Min]	0 psi
Pressure unit reference	Gauge (relative)
Product group	Sensors
Product name	Pressure transmitter
Pulse-snubber	Yes
Quantity per packing format	14 pc
Response time max. [ms]	4 ms
Specification key	MBS 3050-3611-DVGB04-2
Supply voltage [V] DC [Max]	34 V
Supply voltage [V] DC [Min]	9 V
Type	MBS 3050
