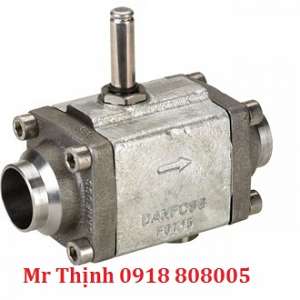

VAN ĐIỆN TỪ EVRA32 C/N 042H1126

Mã sản phẩm: 042H1126

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [Max]	175 °F
Ambient temperature range [°F] [Min]	-40 °F
Body material	Cast iron
Coil	No
Connection material	Steel
Connection standard, inlet	EN 10220
Connection standard, outlet	EN 10220
Cv value [gal/min]	18.5 gal/min
Direction	Straightway
Flow direction indicator	Embossed 1-way arrow
Function	NC
Inlet connection type	Butt weld
Inlet size [in]	1 1/4 IN
Kv value [m³/h]	16 m3/h
Manual operation option	Yes
Max. Working Pressure [bar]	42 bar
Max. Working Pressure [psig]	610 psig
MaxOPD[bar] 10W AC	21 bar
MaxOPD[bar] 12W AC	25 bar
MaxOPD[bar] 20W DC	14 bar
MaxOPD[psi] 14W AC	300 psi
Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [Max]	105 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	221 °F
Medium temperature range [°F] [Min]	-40 °F
MinODP [bar]	0.2 bar
MinODP [psi]	2.9 psi
Orifice size [mm]	22.23 mm
Outlet connection type	Butt weld
Outlet size [in]	1 1/4 IN
Packing format	Single pack
Parts Program name	EVRA / EVRAT
Product accessories	Solenoid valve accessories
Product group	Solenoid valves
Product name	Solenoid valve
Quantity per packing format	1 pc
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717
Serviceable	Solenoid valve spare parts
Type	EVRA 32
Type designation	Solenoid valve
Valve operation	SERVO-PISTON
