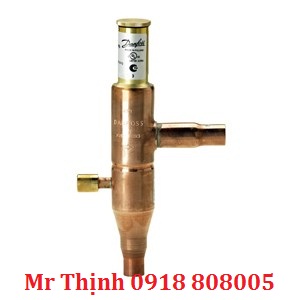

VAN ĐIỀU ÁP KVR 22 C/N 034L0094

Gross weight

0.41 Kg

Net weight

0.37 Kg

EAN

5702428411615

Approval

C UL US LISTED
EAC
LLC CDC TYSK
RoHS
RoHS China

Approval file name

REFRIGERANT VALVE 53R0

Equipment

Schrader valve access port

Factory setting [bar]

10 bar

Factory setting [psig]

145 psig

Flow direction indicator

Engraved 1-way arrow

Inlet connection type

SOLDER, ODF

Inlet size [in]

7/8 IN

Inlet size [mm]

22 mm

Max. test pressure [bar]

31 bar

Max. test pressure [psig]

450 psig

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

406 psig

Medium temperature range [°C] [Max]

130 °C

Medium temperature range [°C] [Min]

-45 °C

Medium temperature range [°F] [Max]

266 °F

Medium temperature range [°F] [Min]

-49 °F

Outlet connection type

SOLDER, ODF

Outlet size [in]

7/8 IN

Outlet size [mm]

22 mm

P band max. [bar]

6.2 bar

P band max. [psi]

90 psi

Packing format

Multi pack

Product accessories

No

Product family name

KVR

Product group

Press. and temp. regul. valves

Product name

Condensing pressure regulator

Quantity per packing format

12 pc

Rated cap. conditions [IMP]

Delta p hotgas=6 psi
tevap=40 °F
Delta p liquid=3 psi
tcond=110 °F

Rated cap. conditions [SI]

Delta p hotgas=0.4 bar
tevap=-10 °C

Rated cap. R134a, Hot gas [kW]

11.6 kW

Rated cap. R134a, Hot gas [TR]

3.03 tons

Rated cap. R22, Hot gas [kW]

13.2 kW

Rated cap. R22, Hot gas [TR]

4.13 tons

Rated cap. R407C, Hot gas [kW]

14.3 kW

Rated cap. R407C, Hot gas [TR]

4.5 tons

Rated cap.R404A/R507,Hot gas[k

12 kW

Rated cap.R404A/R507,Hot gas[T

3.27 tons

Rated capacity R134a [kW]

47.3 kW

Rated capacity R134a [TR]

11.8 tons

Rated capacity R22 [kW]

50.4 kW

Rated capacity R22 [TR]

12.7 tons

Rated capacity R404A/R507 [kW]

36.6 kW

Rated capacity R404A/R507 [TR]

8.2 tons

Rated capacity R407C [kW]

54.4 kW

Rated capacity R407C [TR]

13.8 tons

Refrigerants

R1270
R134a
R22
R290
R404A
R407A
R407C
R407F
R422B
R422D
R448A
R449A
R450A
R452A
R507A
R513A
R600
R600a
R1234ze
R407H
R449B
R134a/R513A
R454C
R455A
R515B
R516A

Regulation range [bar] [Max]

17.5 bar

Regulation range [bar] [Min]

5 bar

Regulation range [psig] Pe [Max]

254 psig

Regulation range [psig] Pe [Min]

73 psig

Serviceable

KV valves spare parts

System line application

Discharge line
Liquid line
Suction line

Type

KVR 22
