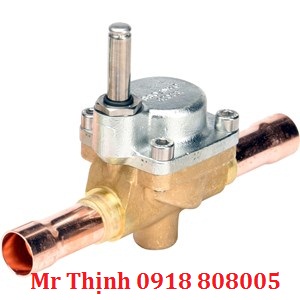

VAN ĐIỆN TỪ DANFOSS EVR 25 C/N 032L2207

Mã sản phẩm: 032L2207

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - COIL DEPENDEND
Approval	UL EAC
Coil	No
Cv value [gal/min]	11.3 gal/min
Direction	Straightway
Function	NC
Inlet connection type	SOLDER, ODF
Inlet size [in]	1 3/8 IN
Kv value [m³/h]	9.8 m3/h
Manual operation option	Yes
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[bar] 20W DC	17 bar
MaxOPD[bar] coil BJ/BX	31 bar
MaxOPD[psi] 10W AC	550 psi
MaxOPD[psi] 20W DC	246 psi
MaxOPD[psi] coil BJ/BX	450 psi
Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [Max]	105 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	221 °F
Medium temperature range [°F] [Min]	-40 °F
MinODP [bar]	0.2 bar
MinODP [psi]	2.9 psi
MOPD[bar/psi]	COIL DEPENDEND
Orifice size [mm]	25 mm
Outlet connection type	SOLDER, ODF
Outlet size [in]	1 3/8 IN
Packing format	Single pack
Parts Program name	EVR
Product family name	EVR v2
Product Group	Solenoid valves
Product name	Solenoid valve
Product type	EVR 25
Quantity per packing format	1 pc
Refrigerants	R125 R134a R152a R22 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507 R513A
System line application	Discharge line Hot gas defrost drain line Hot gas defrost line Liquid feed line Liquid line Main hot gas defrost line Suction line
Type designation	Solenoid valve, Solder
Valve operation	SERVO-PISTON
