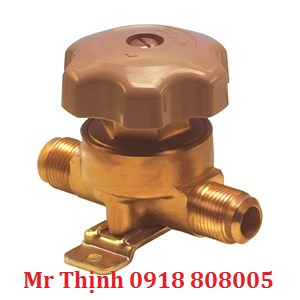

VAN CHẶN DANFOSS BLM 6 C/N 009G0101

Mã sản phẩm: 009G0101

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Approval	C UL US LISTED EAC LLC CDC TYSK
Body material	Brass
Connection material	Brass
Cv value [gal/min]	0.35 gal/min
Direction	Straightway
Equipment	Hand wheel
Flow direction indicator	Embossed 1-way arrow
Inlet connection type	FLARE
Inlet size [in]	1/4 IN
Kv value [m³/h]	0.3 m3/h
Max. test pressure [bar]	36.4 bar
Max. test pressure [psig]	528 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Outlet connection type	FLARE
Outlet size [in]	1/4 IN
Packing format	Multi pack
Product accessories	BM/GBC valve accessories
Product description	Shut-off valve
Product family name	BM
Product Group	Shut-off and regulating valves
Product name	Shut-off diaphragm valve
Product type	BML 6
Quantity per packing format	20 pc
Refrigerants	R134a R22/R407C R404A/R507 R513A R407H R449B R515B
Serviceable	BM/GBC valve spare parts
System line application	Discharge line Liquid line Suction line
Temperature range [°C] [Max]	100 °C
Temperature range [°C] [Min]	-55 °C
Temperature range [°F] [Max]	212 °F
Temperature range [°F] [Min]	-67 °F
UL approval file name	REFRIGERANT VALVE 53R0
Working range [bar] [Max]	21 bar
Working range [bar] [Min]	-1 bar
Working range [psig] [Max]	304 psig
Working range [psig] [Min]	-14 psig
