CÔNG TẮC ÁP SUẤT DANFOSS KP2 (060-112066)

Mã sản phẩm: KP2 (060-112091)

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Chi tiết
Tính năng
Video

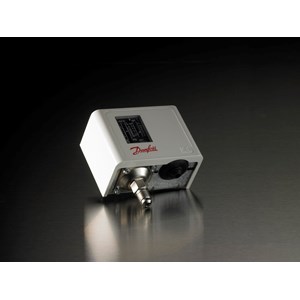

KP pressure switch, low pressure

060-112066

Ambient temperature:–40 - +65°C (+80°C for max. 2 hours).
DIN-approved units:–40 - +65°C (+80°C for max. 2 hours).
Max. working pressure = 17 bar
Max. test pressure = 20 bar
Contact load, AC:
AC1: 16 A, 400 V
AC3: 16 A, 400 V
AC15: 10 A, 400 V
Max. starting current (L.R.): 112 A, 400 V
Contact load, DC:
DC13: 12 W, 220 V control current

YPE CODE	KP2
WEIGHT	0.297 Kg
AMBIENT TEMP. RANGE	-25 - 65 °C
AMBIENT TEMP. RANGE	-13 - 149 °F
APPROVAL	BV, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LR, PED, RINA, RMRS
CONTACT FUNCTION	SPDT
CONTACT RATING	AC1=16 A, 400 V
CONTACT RATING	AC15=10 A, 400 V
CONTACT RATING	AC3=16 A, 400 V
CONTACT RATING	DC13=12 W, 220 V
CONTACT RATING	LR 112 A, 400 V
DIFF.	0,40 - 1,50 bar
DIFF.	6,00 - 22,00 psi
EAN NO.	5702422052548
ELECTR. CONN. COMMENTS	Rubber cable gland
ELECTR. CONN. SIZE	6-14 mm
ENCL.	IP44
MAX. TEST PRESSURE	20,0 bar
