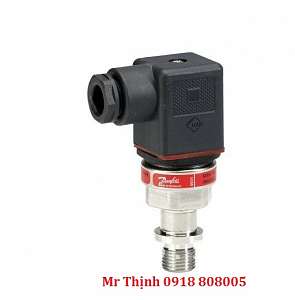

CẢM BIẾN ÁP SUẤT DANFOSS MBS1900 0-15 BAR C/N 064G6590

Mã sản phẩm: 064G6590

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

+ supply	Pin 1
- common	Pin 2
Accuracy @ ref. temp. ±FS [%]	1 %
Accuracy, typical +/- FS [%]	1 %
Adj. zero point and span	No
Ambient temperature range [°C] [Max]	80 °C
Ambient temperature range [°C] [Min]	-20 °C
Ambient temperature range [°F] [Max]	176 °F
Ambient temperature range [°F] [Min]	-4 °F
Approval	C UR US
Approval comments	UL-873
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Compensated temp. range [°F] [Max]	176 °F
Compensated temp. range [°F] [Min]	32 °F
Electrical conn. Male/Female	Male and Female
Electrical connection	Plug
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
Fault Monitoring Demand	No
Flush diaphragm	No
Intrinsically safe	No
Medium temperature range [°C] [Max]	80 °C
Medium temperature range [°C] [Min]	0 °C
Medium temperature range [°F] [Max]	176 °F
Medium temperature range [°F] [Min]	32 °F
Non-linearity BFSL ±FS [%]	0.5 %
