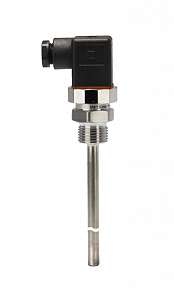

CẢM BIẾN NHIỆT ĐỘ MBT 5250 084Z8012

Mã sản phẩm: 084Z8012
Thương hiệu: Danfoss
Giá bán: 1 đ
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

MBT 5250, Temperature sensors

The MBT 5250 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications.
This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5250 can be delivered with NTC/PTC elements on request.
The measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5250 is equipped with EN 175301-803-A, Pg 9 as standard, but can be delivered with M12 or DIN 72585 Bayonet on request.
  • For gaseous or liquid media, e.g. air, gas, vapour, water or oil
  • Up to +200°C media temperatures
  • Pt100 or Pt1000 resistance element
  • Can be used with 2- or 3-wire connections
  • Gold plated male and female connector
  • Interchangeable measuring insert
  • Available with all relevant marine approvals



Code no.

Type

Resistance
value

Temp. range
[°C]

Ins. Length
[mm]

Output sign.

Process conn. size

El. conn.

Wires
[pcs]

084Z2060

MBT 5250

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

EN175301-803 PG11 4 pins

4 pc

084Z3031

MBT 5250

1 x Pt 1000

-50 - 200 °C

50 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 11

2 pc

084Z3058

MBT 5250

2 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 72585 bayonet connector

2 pc

084Z3079

MBT 5250

2 x Pt 100

-50 - 200 °C

120 mm

Ohm

1/2, G 1/2 A

DIN 72585 bayonet connector

2 pc

084Z3085

MBT 5250

2 x Pt 1000

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 72585 bayonet connector

2 pc

084Z3093

MBT 5250

1 x Pt 100

-50 - 200 °C

200 mm

Ohm

1/4, G 1/4 A

DIN 43650/Pg 11

2 pc

084Z3107

MBT 5250

1 x Pt 1000

-50 - 200 °C

100 mm

Ohm

18x1.5, M18 x 1.5

DIN 43650/Pg 11

2 pc

084Z3245

MBT 5250

2 x Pt 100

-50 - 200 °C

50 mm

Ohm

18x1.5, M18 x 1.5

DIN 72585 bayonet connector

2 pc

084Z3273

MBT 5250

1 x Pt 1000

-50 - 200 °C

40 mm

Ohm

14x1.5, M14 X 1.5 ISO6149-

DIN 72585 bayonet connector

2 pc

084Z5177

MBT 5250

1 x Pt 100

-50 - 200 °C

400 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z6017

MBT 5250

1 x Pt 100

-50 - 200 °C

300 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z6189

MBT 5250

1 x Pt 100

-50 - 200 °C

110 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z6203

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 11

2 pc

084Z7007

MBT 5250

1 x Pt 1000

-50 - 200 °C

120 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z7074

MBT 5250

1 x Pt 100

-50 - 200 °C

310 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8006

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 11

2 pc

084Z8007

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8008

MBT 5250

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8010

MBT 5250

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8011

MBT 5250

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8012

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8013

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8014

MBT 5250

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8017

MBT 5250

1 x Pt 100

-50 - 200 °C

60 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8019

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 11

2 pc

084Z8022

MBT 5250

1 x Pt 100

-50 - 200 °C

200 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8024

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 13.5

2 pc

084Z8036

MBT 5250

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8037

MBT 5250

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 11

2 pc

084Z8038

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 9

2 pc

084Z8039

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8040

MBT 5250

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 9

2 pc

084Z8041

MBT 5250

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 11

2 pc

084Z8042

MBT 5250

1 x Pt 100

-50 - 200 °C

200 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 9

2 pc

084Z8043

MBT 5250

1 x Pt 100

-50 - 200 °C

200 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8044

MBT 5250

1 x Pt 100

-50 - 200 °C

200 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 11

2 pc

084Z8047

MBT 5250

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 13.5

2 pc

084Z8054

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

24x2, M24 x 2

DIN 43650/Pg 13.5

2 pc

084Z8056

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8058

MBT 5250

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8061

MBT 5250

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 9

2 pc

084Z8065

MBT 5250

1 x Pt 100

-50 - 200 °C

150 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 11

2 pc

084Z8066

MBT 5250

1 x Pt 100

-50 - 200 °C

50 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 11

2 pc

084Z8067

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 11

2 pc

084Z8068

MBT 5250

1 x Pt 100

-50 - 200 °C

200 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 11

2 pc

084Z8069

MBT 5250

1 x Pt 100

-50 - 200 °C

250 mm

Ohm

1/2-14, 1/2-14 NPT

DIN 43650/Pg 11

2 pc

084Z8075

MBT 5250

1 x Pt 100

-50 - 200 °C

250 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8083

MBT 5250

1 x Pt 1000

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8090

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 13.5

2 pc

084Z8095

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

3/4-16, 3/4-16 UNF-2A

DIN 43650/Pg 11

2 pc

084Z8105

MBT 5250

1 x Pt 100

-50 - 200 °C

120 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8134

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 13.5

2 pc

084Z8139

MBT 5250

1 x Pt 1000

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8146

MBT 5250

1 x Pt 100

-50 - 200 °C

60 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8167

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 13.5

2 pc

084Z8177

MBT 5250

1 x Pt 1000

-50 - 200 °C

50 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 9

2 pc

084Z8189

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 13.5

2 pc

084Z8218

MBT 5250

1 x Pt 100

-50 - 200 °C

200 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc

084Z8226

MBT 5250

1 x Pt 100

-50 - 200 °C

60 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 13.5

2 pc

084Z8240

MBT 5250

1 x Pt 100

-50 - 200 °C

250 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8244

MBT 5250

1 x Pt 100

-50 - 200 °C

80 mm

Ohm

18x1.5, M18 x 1.5

DIN 43650/Pg 11

2 pc

084Z8245

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

18x1.5, M18 x 1.5

DIN 43650/Pg 11

2 pc

084Z8292

MBT 5250

1 x Pt 100

-50 - 200 °C

120 mm

Ohm

1/2, G 1/2 A

DIN 43650/Pg 11

2 pc

084Z8293

MBT 5250

1 x Pt 100

-50 - 200 °C

100 mm

Ohm

3/4, G 3/4 A

DIN 43650/Pg 13.5

2 pc



Type: MBT 5250

Code no.    084Z2060  084Z3031  084Z3058  084Z3079  084Z3085  084Z3093  084Z3107  084Z3245  084Z3273  084Z5177  084Z6017  084Z6189  084Z6203  084Z7007  084Z7074  084Z8006  084Z8007  084Z8008  084Z8010  084Z8011  084Z8012  084Z8013  084Z8014  084Z8017  084Z8019  084Z8022  084Z8024  084Z8036  084Z8037  084Z8038  084Z8039  084Z8040  084Z8041  084Z8042  084Z8043  084Z8044  084Z8047  084Z

CẢM BIẾN NHIỆT ĐỘ MBT 5250



Characteristic

Value
Type MBT 5250
Weight 0.154 Kg
Ambient temperature max. [°C] 125 °C
Ambient temperature max. [°F] 257 °F
Connection standard ISO 228
Connection type G
EAN 5702423078349
Electrical conn. Male/Female Male and Female
Electrical connection DIN 43650/PG 9
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP65
Insertion length [in] 4,00 in
Insertion length [mm] 100 mm
Number of terminals [pcs] 3 PC
Output signal Ohm
Packing format Multi pack
Process connection Male/Female Male
Process connection material Stainless steel
Process connection size 1/2
Process connection size G 1/2 A
Process connection standard ISO 228-1-A
Process connection type G
Protection tube diameter [in] 0,32 in
Protection tube diameter [mm] 8,0 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 PC
Resistance value 1 x Pt 100
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type PT
Sensor Insert exchangeable
Temperature Range [°C] -50 - 200 °C
Temperature range [°F] -58 - 392 °F
Tolerance EN 60751 Class B
Type designation MBT 5250-0000-100-120
Wires [pcs] 2 PC
